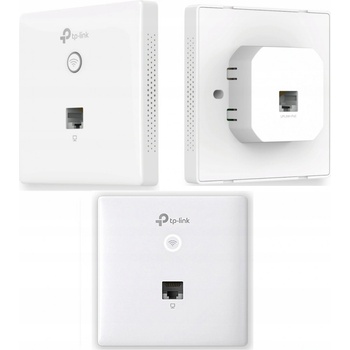

TP-Link EAP230

Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

• Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
• Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
• Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
• Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES

Interface

• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port

Physical Security Lock

No

Button

LED/Wi-Fi Button, RESET

Power Supply 802.3af/802.3at PoE

Power Consumption 7 W

Dimensions 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

Antenna 2 Dual-Band Antennas

• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 3.6 dBi

Mounting

Wall Plate Mounting

Hardware Watch Dog

Yes

WIRELESS FEATURES

Wireless Standards

IEEE 802.11n/g/b/ac

Frequency 2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps

Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• MU-MIMO
• Band Steering
• Beamforming

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power

CE:

• =20 dBm (2.4 GHz, EIRP)
• =23 dBm (5 GHz, EIRP)

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP v1,v2c

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

OTHERS

Certification

CE, RoHS

Package Contents

• Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
• Installation Guide
• Mounting Screw

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment

• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
