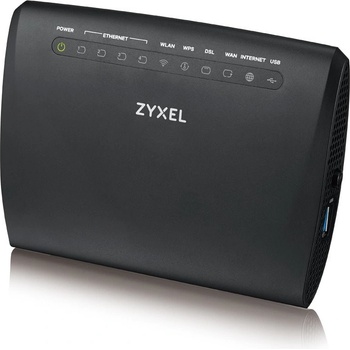

ZyXEL VMG3312-T20A-CZ01V1F

Zyxel VMG3312-T20A, Wireless N VDSL2 4-port Gateway Combo WAN Gigabit Gateway

The Zyxel VMG3312-T20A is an advanced VDSL2 gateway that provides autosensing between VDSL2 and ADSL2+ for high-speed Internet access. In addition, with supports to G.vectoring, it increases speed and coverage to compete with other broadband technologies without infrastructural change.

The Zyxel VMG3312-T20A integrates an IEEE 802.11 b/g/n access point and a 10/100 Ethernet switch for Local Area Network (LAN) access. It can act as a concentrator or power hub to distribute contents between different devices connected inside the LAN wired and wirelessly. We’ve also enhanced the WiFi ability to ensure a quality user experience.

Additionally, it comes with the multiple-WAN function suitable for future FTTH deployments with optimized CAPEX.

Users could also leverage the USB interface on the Zyxel VMG3312-T20A for file sharing or pair with a 3G USB dongle for mobile connectivity.

VDSL2 G.vectoring for maximized service coverage

Combo WAN-in-a-box for optimized CAPEX in FTTH/VDSL2 deployments 2.4 GHz 11n (2x2) for superior performance and coverage

Advanced QoS to ensure quality of triple-play services

Remote provisioning and management through TR-069/TR-181 issue-2

ROM-D feature for easy distributor/operator customization

Easy upgrade to 3G USB support through configuration files

VDSL2 Vectoring for maximized service coverage

The Zyxel VMG3312-T20A Wireless N VDSL2 Combo WAN Gateway comes with USB supports to the Vectoring technology that eliminates crosstalk or interference among different VDSL lines. With the mechanism, Vectoring significantly increases bit rates to compete with cable/fiber technologies as well as to enlarge service coverage without changing the current infrastructure — a way to significantly save cost comparing to fiber-to-thehome (FTTH) deployments, and the CAPEX can be optimized by the improved data rates and coverage without upgrading equipment.

Wireless Standard 802.11 b/g/n 2.4 GHz

VDSL Compliance

ITU-T G.993.2 VDSL2, band plan 997, 998

VDSL profiles (8a/b/c/d, 12a/b, 17a, 30a)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.inp): up to 16 symbols

SRA (Seamless Rate Adaptation)

UPBO (Upstream Power Back-off)

PhyR (Physical Layer Retransmission)

TR-114

ADSL Compliance

ITU-T G.992.1 (G.dmt) Annex A

ITU-T G.992.2 (G.lite) Annex A

ANSI T1.413

ITU-T G.992.3 ADSL2

ITU-T G.992.5 ADSL2+

ITU-T G.998.4 (G.inp)

Reach-Extended ADSL (RE ADSL)

SRA (Seamless Rate Adaption)

PhyR (Physical Layer Retransmission)

TR-067/100

WLAN

IEEE 802.11 b/g/n compliance

• Frequency: 2.4 GHz
• Data rate: 300 Mbps

WPA/WPA2

WPA2-PSK with AES

WPA/WPA2-PSK with AES/TKIP+AES

WEP data encryption 64/128 bit

Wireless Protected Setup (WPS)

Multi SSID (up to 4) and hidden SSID support

USB

File sharing 3G dongle

Bridge/Router

PPPoE (RFC2516)

PPPoA (RFC2364)

DHCP client/server/relay

DHCP option 60/61/125

DNS Proxy/Static DNS/DNS from ISP

NAT (Enable/Disable)

Fullcone NAT (Enable/Disable)

IGMP Proxy (Enable/Disable)

IGMP v1, v2, v3

IEEE 802.1d transparent bridge

NAT server (Port forwarding)

Static route/policy routing

IP protocol (IPv4/IPv6)

VLAN/QoS

VLAN Active (Enable/Disable)/802.1p (0-7)/802.1q (1-4094)

Support flexible traffic classification

TCP/UDP port range

Ether type (NA/IP/ARP/PPPoE Discovery/PPPoE Session/802.1Q/IPv6)

Source & Destination address/subnet mask/port range/MAC/MAC mask

Predefine service

IP protocol (TCP/UDP/ICMP/IGMP/User defined)

DHCP OPT (60/61/77/125)

Packet length 6-bit DiffServ code point (DSCP, RFC 2474)

TCP ACK

Firewall & Security

MAC filter

Scheduler rule

IPv4/IPv6 Firewall (Sateful packet inspection)

Parental control

ACL rule support: (32 ACL rules)

DoS protection

Management

Web/HTTP: 3 level log-in

Login privilege

Command Line Interpreter (CLI) via SSH or Telnet

Firmware upgrade via Web/TFTP/FTP/TR069 RPC method

Text based configuration (XML based)

Configuration backup/update/restore default via Web

Configurable access control for remote management (Interface and/port number)

Trust domain

DSL forum TR-069, TR-098, TR-181 issue-2, TR-064, TR-111

SNMP v1, v2

Rom-D support

TR-069 serial number parameter MUST be device serial number in back label

WAN:

One RJ-11 interface for VDSL/ADSL2 (over POTS)

One RJ-45 connector for Giga-Ethernet WAN port

• LAN: 4 auto-sensing 10/100Mbps Ethernet LAN ports
• Wireless: Two internal antennas

1 USB 2.0 host

Status LED indicator: Power, Ethernet, WLAN, WPS, DSL, WAN, Internet, USB

Power On/Off button

WLAN/WPS button

One button for WLAN on/off

One button for WPS configuration

Reset/Restore button

One real button for restore factory default settings

• Power consumption: 10.96 Watt max
• Item dimensions (WxDxH): 158 x 118 x 26 mm (6.22" x 4.64" x 1.02")
• Item weight: 220 g (0.48 lb.)
• Packing dimensions (WxDxH): 260 x 145 x 37 mm (10.23" x 5.7" x 1.45")
• Packing weight: 440 g (0.97 lb.)

Package Contents

Wireless router

Power adapter

Ethernet cable

RJ-11 cable

Quick start guide

Safety warning card
