Ubiquiti Wave-MLO5

Mechanical

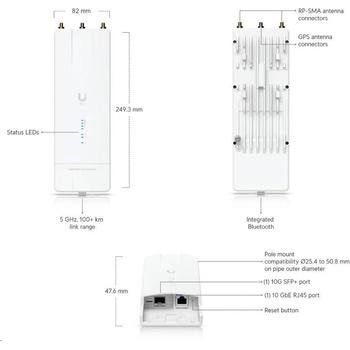

Dimensions 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")

Weight 575 g (1.3 lb)

Enclosure material Aluminum alloy, UV-resistant polycarbonate

• Mount material Strap: stainless metal
• Universal bracket: UV-resistant polycarbonate

Pole mount diameter 25.4 to 50.8 mm (1 to 2") on pipe outer diameter

Weatherproofing IPX6

Hardware

Processor Quad-core IPQ5322 at 1.5 GHz

Memory DDR4 1 GB

Networking interface (1) 10 GbE RJ45 port (1) 10G SFP+ port

RF connectors (2) RP-SMA (Waterproof) (1) GPS (Waterproof)

Max. power consumption 20W

Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply 54V DC, 0.56A, 10 GbE PoE adapter (Included)

Supported voltage range 44–54V DC 22–27V DC

Max. TX power* 5 GHz 24 dBm *Depends on regulatory region.

MIMO 5 GHz (2) 2 x 2

GPS Yes

Button (1) Factory reset

LEDs (1) Power, (1) Ethernet, (1) GPS, (4) signal

Ambient operating temperature -40 to 60° C (-40 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE

Software

Operating mode PtP

Services UISP, ping watchdog, NTP client

Tools Alignment, speed test, ping, traceroute, discovery, site survey

Network Bridge mode

Total throughput 5+ Gbps

Max. range* 100 km *Throughput and range values may vary depending on the environmental conditions.

Encryption WPA3-PSK (AES)

RF

Operating frequency* 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz *Depends on regulatory region.

• Channel bandwidth Radio 1: 20, 40, 80, 160 MHz
• Radio 2: 20, 40, 80, 160, 240 MHz

Modulation BPSK (1), QPSK (1), QPSK (3), 16QAM (1), 16QAM (3), 64QAM (?), 64QAM (3), 64QAM (?), 256QAM (3), 256QAM (?), 1024QAM (3), 1024QAM (?), 4096QAM (3), 4096QAM (?)
