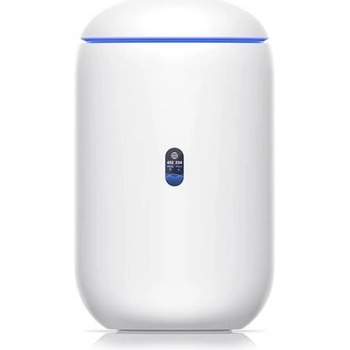

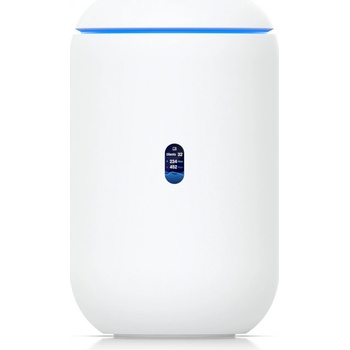

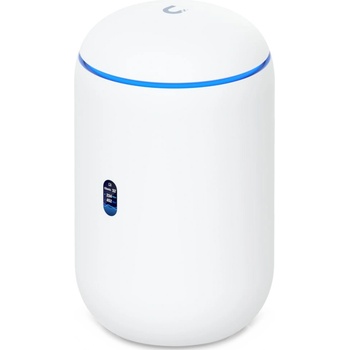

Ubiquiti UDR7

Overview

Dimensions O110 x 184.1 mm (O4.3 x 7.3")

UniFi Application Suite

Network Yes

Protect Yes

Access Yes

Talk Yes

Connect Yes

Managed UniFi Devices 30+

Managed Cameras (5) HD (2) 2K (1) 4K

Simultaneous Users Connected 300+

Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45

LAN Ports (3) 2.5 GbE RJ45 including (1) PoE

IDS/IPS Throughput 2.3 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures 20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Identity Endpoint One-Click VPN

Yes

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size 2,000

Policy-based WAN and VPN Routing

Yes

Customizable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

Integrated WiFi

WiFi Standard 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput 6 GHz 5.7 Gbps 5 GHz 4.3 Gbps 2.4 GHz 688 Mbps

MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Antenna Gain 6 GHz 6 dBi 5 GHz 7 dBi 2.4 GHz 5 dBi

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs 4 per Radio

Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

NVR Storage

Pre-installed 64GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget 15.4W

Max. PoE Wattage per Port by PSE

PoE 15.4W

Voltage Range PoE Mode 44-57V

Max. Power Consumption 26W (Excluding PoE output)

Power Method

Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply

AC/DC, Internal, 50W

Max. TX Power 6 GHz 24 dBm 5 GHz 26 dBm 2.4 GHz 23 dBm

Supported Voltage Range 100-240V AC

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory 3 GB

Weight 1.1 kg (2.4 lb)

Enclosure Material

Polycarbonate

LCM Display 0.96" status display

Management

Ethernet

Bluetooth

LEDs

System

Yes

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature -10 to 40° C (14 to 104° F)

Ambient Operating Humidity 5 to 95% noncondensing

Certifications

CE, FCC, IC

Button (1) Factory-reset

Software

VLAN 802.1Q

Guest Traffic Isolation

Yes

Application Requirements

UniFi Network

Version 9.0.108 and later
