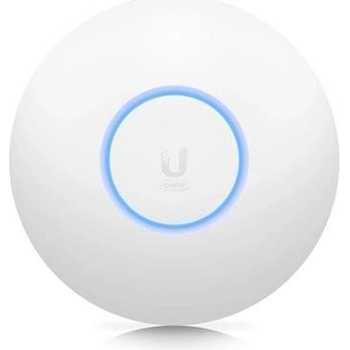

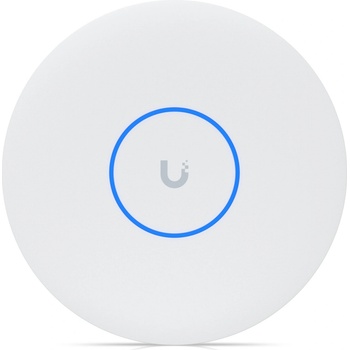

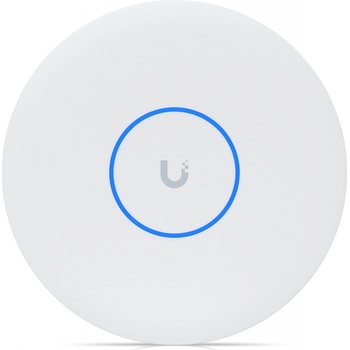

Ubiquiti U7-Pro-XG

Overview

Dimensions

O206 x 32.5 mm (O8.1 x 1.3")

WiFi Standard

WiFi 7

Spatial Streams 6

Coverage Area 140 m2 (1,500 ft2)

Max. Client Count 300+

Uplink 10 GbE

Mounting

Ceiling, Wall (Lite Mount Included)

Power Method

PoE+

Performance

MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate 6 GHz 5.8 Gbps (BW320) 5 GHz 4.3 Gbps (BW240) 2.4 GHz 688 Mbps (BW40)

Antenna Gain 6 GHz 6 dBi 5 GHz 5 dBi 2.4 GHz 4 dBi

Max. TX Power 6 GHz 24 dBm 5 GHz 26 dBm 2.4 GHz 23 dBm

Max. BSSIDs 8 per Radio

Supported Data Rates 802.11be (WiFi 7)

• 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
• 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes 802.11v BSS Transition Management

Yes 802.11r Fast Roaming

Yes 802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page

Yes

Voucher Authentication

Yes

Payment-Based Authentication

Yes

External Portal Server Support

Yes

Password Authentication

Yes

Guest Network Isolation

Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption 22W

Supported Voltage Range 42.5—57V DC

Networking Interface (1) 10 GbE RJ45 port

Weight 750 g (1.7 lb)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate, aluminum alloy

Mount Material

Stainless steel (SUS304), galvanized steel (SGCC)

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Ambient Operating Temperature -30 to 40° C (-22 to 104° F)

Ambient Operating Humidity 5 to 95% noncondensing
