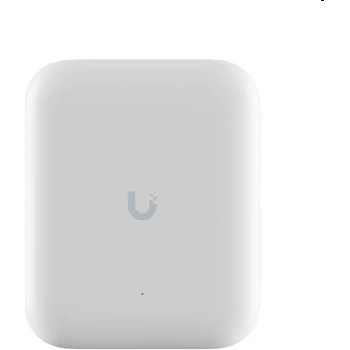

Ubiquiti U7-Outdoor

Overview

Dimensions 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")

WiFi Standard

WiFi 7

Spatial Streams 4

Coverage Area 465 m2 (5,000 ft2)

Max. Client Count 250+

Uplink 2.5 GbE

Mounting Locations

Wall, pole

Mounting Plate

Included mount

Weatherproofing

IPX6

Power Method

PoE+

Performance

MIMO 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate 5 GHz 4.3 Gbps (BW240) 2.4 GHz 688 Mbps (BW40)

Antenna Gain 5 GHz

• Directional internal: 12.5 dBi
• External omni: 4 dBi

2.4 GHz

• Directional internal: 8 dBi
• External omni: 3 dBi

Max. TX Power 5 GHz 26 dBm 2.4 GHz 23 dBm

Max. BSSIDs 8 per Radio

Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes 802.11v BSS Transition Management

Yes 802.11r Fast Roaming

Yes 802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page

Yes

Voucher Authentication

Yes

Payment-Based Authentication

Yes

External Portal Server Support

Yes

Password Authentication

Yes

Guest Network Isolation

Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption 19W

Supported Voltage Range 42.5—57V DC

Networking Interface (1) 1/2.5 GbE RJ45 port

Weight 1.2 kg (2.6 lb)

Wind Loading 74.6 N at 200 km/h (16.8 lbf at 125 mph)

Pole Mount Diameter 1–2.36" (25–60 mm)

Antennas (1) Directional internal antenna (2) External omni antennas (2) RP-SMA connectors for external antenna

Antenna beamwidth 5 GHz 45° 2.4 GHz 90°

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate, aluminum alloy

Mount Material

Polycarbonate, SGCC steel

LEDs

System

• (1) Power: White/Blue
• (1) System: White/Blue
• (4) Mesh Signal: Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

CE, FCC, IC

Operating Frequency

US/CA: 2400 - 2472 MHz

• U-NII-1: 5150 - 5250 MHz
• U-NII-2A: 5250 - 5350 MHz
• U-NII-2C: 5470 - 5725 MHz
• U-NII-3: 5725 - 5850 MHz

Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz

Ambient Operating Temperature -30 to 60° C (-22 to 140° F)

Ambient Operating Humidity 5 to 95% noncondensing
