TP-Link ER7412-M23.0,fanless) ER7412-M2

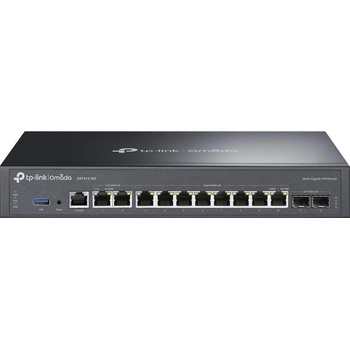

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router

• Čtyřjádrový procesor @2.0GHz
• 2× 2,5G RJ45 WAN/LAN porty
• 10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45)
• 1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)
• Až 11 WAN portů
• Vysoce zabezpečené SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralizovaná správa cloudu přes web nebo aplikaci Omada
• Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7412-m2/

Technické specifikace

SECURITY Access Control • Source/Destination IP-Based ACL

• Stateful ACL
• IPv4/IPv6 ACL
• National Based ACL Filtering • WEB Group Filtering§
• URL Filtering
• Web Security§ ARP Inspection • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§ Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP Interface • 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports
• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m) Button Reset Button Power Supply 100–240 VAC, 50/60 Hz Flash 128MB NAND DRAM 1 GB DDR4 Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm) Protection 4 kV surge protection Enclosure Steel Mounting • Desktop
• Rackmountable Max Power Consumption 18.5W (With USB 3.0 connected)

PERFORMANCE GRE • Unencrypted: 1153.0 Mbps

• Encrypted: 559.2 Mbps WireGuard VPN 771.6 Mbps Concurrent Session 1,000,000 New Sessions /Second 7 NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps IPsec VPN Throughput • ESP-SHA1-AES256: 1125.60 Mbps
• ESP-SHA256-AES256: 1133.1 Mbps
• ESP-SHA384-AES256: 1126.6 Mbps
• ESP-SHA512-AES256: 1132.8 Mbps OpenVPN UDP: 266.2 Mbps L2TP VPN Throughput • Unencrypted: 2724.5 Mbps
• Encrypted: 1018.4Mbps PPTP VPN Throughput • Unencrypted: 3035 Mbps
• Encrypted: 534.6 Mbps SSL VPN Throughput 263.1 Mbps 66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps 1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps

BASIC FUNCTIONS WAN Connection Type • Static IP/Dynamic IP

• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port MAC Clone Modify WAN/LAN MAC Address† DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS Advanced Routing • Static Routing

• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode) Bandwidth Control IP/Port-based Bandwidth Control Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection NAT • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP Session Limit IP-based Session Limit

VPN GRE Only in Standalone Mode SSL VPN 80 Tunnels IPsec VPN • 150 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) PPTP VPN • PPTP VPN Server
• PPTP VPN Client (15)**
• 150 Tunnels
• PPTP with MPPE Encryption L2TP VPN • L2TP VPN Server
• L2TP VPN Client (15)**
• 150 Tunnels
• L2TP over IPSec OpenVPN • OpenVPN Server
• OpenVPN Client (11)**
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

AUTHENTICATION Web Authentication • No Authentication

• Simple Password*
• Hotspot (Local User/Voucher*/SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP

MANAGEMENT Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller
• Omada Software Controller Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. Management Features • Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*

OTHERS Certification CE, FCC Package Contents • ER7412-M2

• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux Environment • Operating Temperature: 0–45 ? (32–113 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing

• Kód produktu: ED324163
• Part no.: ER7412-M2
• EAN: 4895252505184
