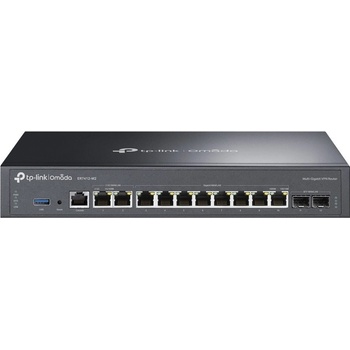

TP-Link ER7412-M2
Omada Multi-Gigabit VPN Router
Čtyřjádrový procesor @2.0GHz 2× 2,5G RJ45 WAN/LAN porty 10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45) 1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)
Až 11 WAN portů
Vysoce zabezpečené SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
Centralizovaná správa cloudu přes web nebo aplikaci Omada
Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7412-m2/
Technické specifikace
SECURITY
Access Control • Source/Destination IP-Based ACL
- Stateful ACL
- IPv4/IPv6 ACL
- National Based ACL
Filtering • WEB Group Filtering§
- URL Filtering
- Web Security§
ARP Inspection • Sending GARP Packets§
- ARP Scanning§
- IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface • 1× 2.5G RJ45 WAN/LAN Port
- 1× 2.5G RJ45 WAN/LAN Port
- 2× Gigabit SFP WAN/LAN Ports
- 8× Gigabit RJ45 WAN/LAN Ports
- 1× RJ45 Console Port
- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
- 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 100–240 VAC, 50/60 Hz
Flash 128MB NAND
DRAM 1 GB DDR4
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting • Desktop • Rackmountable
Max Power Consumption 18.5W (With USB 3.0 connected)
PERFORMANCE
GRE • Unencrypted: 1153.0 Mbps • Encrypted: 559.2 Mbps
WireGuard VPN 771.6 Mbps
Concurrent Session 1,000,000
New Sessions /Second 7
NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps
NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps
NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps
NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 1125.60 Mbps
- ESP-SHA256-AES256: 1133.1 Mbps
- ESP-SHA384-AES256: 1126.6 Mbps
- ESP-SHA512-AES256: 1132.8 Mbps
OpenVPN UDP: 266.2 Mbps
L2TP VPN Throughput • Unencrypted: 2724.5 Mbps • Encrypted: 1018.4Mbps
PPTP VPN Throughput • Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps
SSL VPN Throughput 263.1 Mbps 66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps 1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing • Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode)
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit IP-based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 80 Tunnels
IPsec VPN • 150 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server • PPTP VPN Client (15)** • 150 Tunnels • PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server • L2TP VPN Client (15)** • 150 Tunnels • L2TP over IPSec
OpenVPN • OpenVPN Server • OpenVPN Client (11)** • 121 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
AUTHENTICATION
Web Authentication • No Authentication • Simple Password* • Hotspot (Local User/Voucher*/SMS*/Radius*) • External Radius Server • External Portal Server* • LDAP
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule*
OTHERS
Certification CE, FCC
Package Contents • ER7412-M2 • Power Cord • Quick Installation Guide • Rackmount Kit • RJ45 Console Cord
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storag
- ESP-SHA512-AES256: 1132.8 Mbps
- OpenVPN UDP: 266.2 Mbps
- L2TP VPN Throughput • Unencrypted: 2724.5 Mbps
- Encrypted: 1018.4Mbps
- PPTP VPN Throughput • Unencrypted: 3035 Mbps
• Encrypted: 534.6 Mbps
SSL VPN Throughput 263.1 Mbps 66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps 1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static IP/Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
- Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing • Static Routing
- Policy Routing
- RIP (available in Standalone Mode)
- OSPF (available in Standalone Mode)
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance • Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing, Failover)
- Online Detection
NAT • One-to-One NAT§
- Multi-Net NAT
- Virtual Server
- Port Triggering§
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Session Limit IP-based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 80 Tunnels
IPsec VPN • 150 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
- PPTP VPN Client (15)**
- 150 Tunnels
- PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
- L2TP VPN Client (15)**
- 150 Tunnels
- L2TP over IPSec
OpenVPN • OpenVPN Server
- OpenVPN Client (11)**
- 121 OpenVPN Tunnels
- "Certificate + Account" Mode
- Full Mode
AUTHENTICATION
Web Authentication • No Authentication
- Simple Password*
- Hotspot (Local User/Voucher*/SMS*/Radius*)
- External Radius Server
- External Portal Server*
- LDAP
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3*
- Diagnostics (Ping & Traceroute)§
- NTP Synchronize§
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery*
- Batch Configuration*
- Batch Firmware Upgrading*
- Intelligent Network Monitoring*
- Abnormal Event Warnings*
- Unified Configuration*
- Reboot Schedule*
OTHERS
Certification CE, FCC
Package Contents • ER7412-M2
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- RJ45 Console Cord
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–45 ? (32–113 ?);
- Storage Temperature: -40–70 ? (-40–158 ?)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% non-condensing
