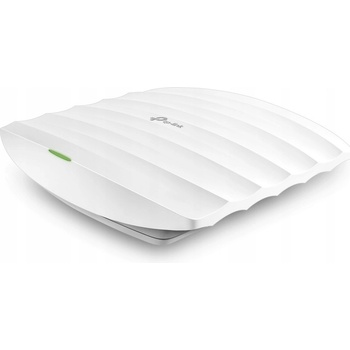

TP-Link EAP245

AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

EAP245

Simultánní Wi-Fi rychlosti 300Mbit/s na 2.4GHz a 867Mbit/s na 5GHz, celkem tedy 1200Mbit/s

Volně dostupný software EAP Controller umožňuje administrátorům snadno spravovat stovky EAP

Podpora napájení po ethernetových kabelech (PoE 802.3af) pro pohodlnou a cenově dostupnou instalaci

Captive portál poskytuje jednu praktickou metodu ověření hostů Wi-Fi sítě

Řízení pásma automaticky přesune dvoupásmová zařízení na širší 5GHz pásmo pro rychlejší připojení

Funkce Load balance zajišťuje rozložení zátěže při velkém počtu uživatelů v rozsáhlých podnikových sítích

• 1750Mbps wireless data rate for uninterrupted wireless connection
• Free Controller Software for easy centralized management of hundreds of EAPs
• Power over Ethernet(802.3at) Support for convenient and affordable installation
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Simple mounting design makes easy to install on any wall or ceiling surface
• Rate limit on per SSID to restrict the bandwidth of each client
• Load balance ensures large numbers of users have smooth network experiences in high density business networks
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• Access Control restricts or only allows the client to access the specified network segment
• Reboot Schedule enables all the APs to reboot automatically at a specified time
• WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
• Multi-SSID divides multiple wireless network for different users
• Compatible with 802.11 a/b/g/n/ac products
• Multiple operating modes including managed AP and standalone AP satisfy different application conditions
• Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services

HARDWARE FEATURES

Interface

Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3at PoE)

Button

Reset

Power Supply

PoE or External 12VDC / 1.5A Power Supply

Power Consumption 12.7 W

Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9in. (180*180*47.5mm)

Antenna Type

Internal Omni

• 2.4GHz: 3* 4dBi
• 5GHz: 3*4dBi

Mounting

Ceiling /Wall Mounting (Kits included)

Physical Security Lock

Kensington Lock Slot

Watch Dog

Yes

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac/n/g/b/a

Frequency 2.4GHz and 5GHz

Signal Rate

• 5GHz:Up to 1300Mbps
• 2.4GHz:Up to 450Mbps

Wireless Functions

Multiple SSIDs(Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Band Steering

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

Transmission Power

CE:

• lt;20dBm(2.4GHz)
• lt;23dBm(5GHz)

FCC: -lt;27dBm(2.4GHz -amp; 5GHz)

MANAGEMENT

EAP Controller Software

Yes

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

Yes

System Logging Local/Remote Syslog

Local/Remote Syslog

Telnet

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

OTHERS

Certification

CE, FCC, RoHS

Package Contents

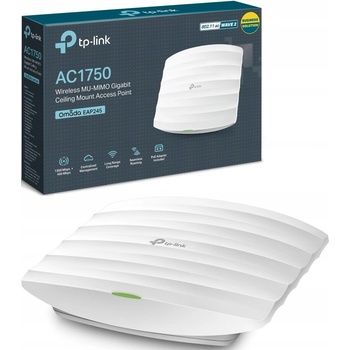

AC1750 Wireless Dual Band Gigabit Access Point EAP245

Power Adapter

Mounting Kits

Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment

• Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
