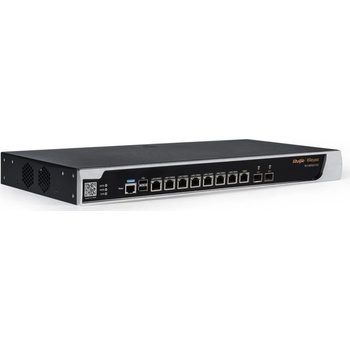

Reyee RG-NBR6215-E

Router integruje funkce, jako je řízení toku, správa chování, vyvažování zátěže, akcelerace mezipaměti a implementuje funkce více zařízení, jako jsou směrovače, řadiče přístupu a zařízení VPN, prostřednictvím jednoho zařízení. Pohodlná správa: Směrovač dokáže rychle lokalizovat poruchu a výrazně zjednodušit postupy provozu a údržby a správu. Nízké náklady: Router poskytuje sadu komplexních řešení problémů s cílem snížit náklady. . Snadné nasazení: Router lze nasadit a připojit se online za tři minuty, což zjednodušuje postupy nasazení. Bezplatná platforma pro správu cloudu navíc umožňuje provádět vzdálenou obsluhu a údržbu.

Hardware Specifications

WAN Port: 1 x 10/100/1000 Base-T port

LAN Port 1 x 10/100/1000 Base-T port

LAN/WAN Switchable Port 6 x 10/100/1000 Base-T port, 2 x 1GBase-X SFP ports

Throughput 2,5 Gbps

Client (Recommended) 2000

System Specifications

CPU 4 Cores, 1,2 GHz

SDRAM/RAM 2 GB

Flash Memory 8 GB Not Support

Hard Disk Drive: 1 TB (Not delivered with the router, can be added)

Physical Specifications

LED: 1 x System Status LED 1 x Power Status LED 1 x SATA LED

Button 1 x Power button

Dimensions 440 mm x 43.6 mm x 200 mm (17.32 in. x 1.72 in. x 7.87 in., without rubber pads) (W x D x H)

Mounting Method Rack-mounted

Rack Size 1U 19-inch Rack-mounted

Fan N/A

Environment

Operating Temperature 0C to 45?C (32°F to 113°F)

Operating Humidity 10% to 90% RH (non-condensing)

Performance

Max Managed Access Points 64 Access points or 128 wall-mounted access points

PPPoE Server Accounts 64

Package Contents

Router 1

Power Cord 1

Power Cord Retention Clip 1

Rubber Pads 4

Mounting Brackets 2 M4 x 8 mm Screws 6

DB-9 Console Cable 1

Ethernet Cable 1

User Manual 1

Warranty Card 1

Software Specifications

Internet Access Mode: PPPoE Client,DHCP Client, Static IP

Access Mode Auto-Identification Support

WAN Address Collision Avoidance Support

VLAN Support IPv6 Not Support

SNMP Support

Network Management

Port Isolation Support

Port Mirroring Support

LAN Port Link Aggregation Not Support

AC Mode Support

Behavior Management: App Block (Time/IP-based Policy), Website Filtering, Blacklist/Whitelist

Application Identification Support

Application Priority Support

Flow Control: User Flow Control Policies, IP-based Automatic Bandwidth Assignment ,VPN Flow Control

System Log Support

Log Storage Support

Fault Diagnosis Support

Local Authentication: Portal Authentication, Password Authentication, Voucher Authentication

VPN

L2TP VPN Support

PPTP VPN Support

IPsec VPN Support

L2TP/PPTP Tunnels 1000

L2TP/IPsec VPN Performance 1000 Mbps

Routing

Static Routing Support

RIP/RIPng Support

OSPFv2 Support

OSPFv3 Not Support

Equal-Cost, Multi-Path Routing Support

Policy-Based Routing Support

Active/Standby Switchover of Ports Support

WAN Load Balancing Support

Network

PPPoE Client Support

PPPoE Server Support

DHCP Server Support

DHCP Snooping Support

DNS Client Support

DNS Server Support

DNS Proxy Support

FTP Client Support

FTP Server Support

TFTP Client Support

NTP Client Not Support

DDNS Cloud DNS

NAT Support

SNMP Support

Ruijie Cloud Support

ACL

ACL Support

Time-based Extended ACL Support

Security

SYN Flood Attack Guard Not Support

UDP Flood Attack Guard Not Support

ICMP Flood Attack Guard Not Support

ICMP Redirection Attack Guard Not Support

ICMP Unreachable Packet Attack Guard Not Support

Fraggle Attack Guard Not Support

Overlength ICMP Packet Attack Prevention Not Support

Winnuke Attack Guard Not Support

IP-based Security Domain Division Not Support

Security Domain Division based on Physical Port (Sub Interface and Aggregation Port) and Dialup Port Not Support

Service and Support

Cloud Management Support

App Management Support

App Upgrade Support

App Restart Support
