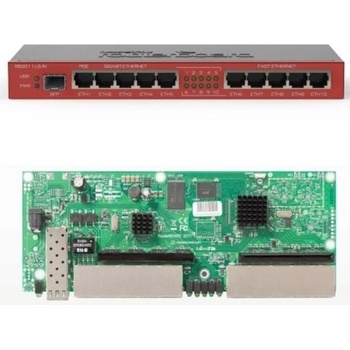

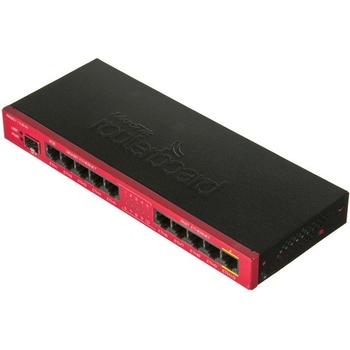

MikroTik RB2011iLS-IN

Overview

RB2011iLS is our first product with SFP cage for gigabit SFP transceivers and ideal solution for FTTH (Fiber To The Home) implementations.

The RB2011iLS has 11 ports: Gigabit SFP cage and five Gigabit Ethernet ports that can be switched together providing affordable wirespeed Fiber-to-Copper converter, and additional five Fast Ethernet ports. Board can be powered by power jack or PoE.

Note that SFP transceiver is NOT included. RB2011iLS supports any 1.25G SFP transceivers that is within the SFF Committee specifications for SFP Transceivers. RB2011LS doesn’t have hardware support for PON (Passive Optical Network).

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

It’s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

RouterBOARD 2011iLS-IN comes with desktop enclosure and power supply.

Wall mount kit for network closet is available for purchase as an optional accessory.

Package Contents

• RB2011iLS-IN
• 24V 0.8A power adapter

Technical Specs

Product code *RB2011iLS-IN

CPU nominal frequency *600 MHz

• SFP DDMI
  • Yes

CPU core count *1

Size of RAM *64 MB

Architecture *MIPS-BE 10/100 Ethernet ports *5 10/100/1000 Ethernet ports *5

MiniPCI slots *0

MiniPCI-e slots *0

Wireless standards *None

Number of USB ports *0

Power Jack *1

Supported input voltage *8 V - 30 V

PoE in *Yes

PoE out *Yes

Voltage Monitor *No

PCB temperature monitor *No

CPU temperature monitor *No

Dimensions *214mmx86mm

Operating System *RouterOS

Operating temperature range *-35°C to +65°C

License level *4

Antenna gain DBI *No

Current Monitor *No

CPU *AR9344

Max Power consumption *6W

SFP ports *1

SFP+ ports *0

Number of chains *0

Serial port *None
