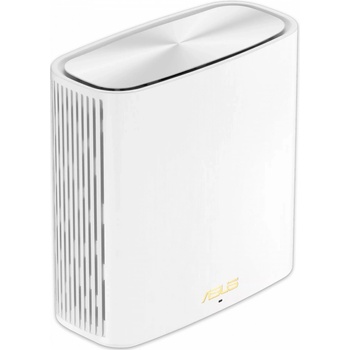

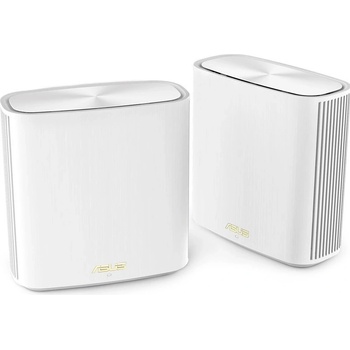

ASUS ZenWiFi XD6,2ks

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX5400 ultimate AX performance : 574+4804 Mbps

AX technology

Yes

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna internal antenna x 6

Transmit/Receive 2.4GHz 2x2 5GHz 4x4

Processor 1.5 GHz tri-core processor

Memory

XD6 256 MB Flash 512 MB RAM

XD6S 128 MB Flash 512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access) 1024-QAM high data rate 20/40/80/160 MHz bandwidth

Operating Frequency 2.4 G Hz / 5 GHz

Ports

• XD6: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
• XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1

Button

WPS Button, Reset Button

LED Indicator

Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 2 A current

Package content

ZenWiFi XD6

RJ-45 cable

Power adapter

Warranty card

Quick start guide

ZenWiFi XD6S

RJ-45 cable

Power adapter

Wall mount kit

Warranty card

Quick start guide *Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.

Product Weight (g)

• XD6: 435 g
• XD6S: 425 g

Remark

Content may vary in different regions and packages.

AiMesh

• AiMesh : Yes
• Primary AiMesh router : Yes
• AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

• Game Boost/acceleration : No
• WTFast : No

Alexa

Support Alexa skill : Yes

IFTTT

Support IFTTT : No

AiProtection

• AiProtection : AiProtection Pro
• Router Security Assessment : Yes
• Malicious site blocking : Yes
• Two-Way IPS : Yes
• Infected Device Prevention and Blocking : Yes

Parental Control

• Parental Control : Yes
• Parental Control Customized Internet schedule : Yes

Traffic Control

• Adaptive QoS : Yes
• Bandwidth Monitor : Yes
• Bandwidth limiter : Yes
• Maximum Bandwidth limiter rule : 32
• Traditional QoS : Yes
• Maximum Traditional QoS rule : 32
• Traffic Monitor : Yes
• Real-time traffic monitor : Yes
• Wired Traffic Monitor : Yes
• Wireless Traffic Monitor : Yes
• Traffic Analyzer : Yes
• Website history : Yes

Wireless

• IPv6 : Yes
• MU-MIMO : Yes
• UTF-8 SSID : Yes
• Guest Network : Yes
• Maximum Guest Network rule : 9
• Guest Network Connection time limit : Yes
• Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS : Yes
• Wi-Fi MAC address filter : Yes
• Maximum MAC filters : 64
• Wireless scheduler : Yes
• Airtime fairness : Yes
• RADIUS Server : No
• Universal beamforming : Yes
• Explicit beamforming : Yes

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN : Yes
• WAN Aggregation : No
• 3G/4G LTE dongle : No
• Android tethering : No
• Port forwarding : Yes
• Maximum port forwarding rule : 64
• Port triggering : Yes
• DMZ : Yes
• DDNS : Yes
• Let's Encrypt : Yes

LAN

• DHCP Server : Yes
• IGMP snooping : Yes
• IPTV : Yes
• LAN Link Aggregation : No
• Manually assign IP address : Yes
• Maximum manually assign IP address rule : 64

VPN

• VPN Client L2PT : Yes
• VPN Client OVPN : Yes
• VPN Client PPTP : Yes
• VPN Server IPSec : Yes
• VPN Server OVPN : Yes
• VPN Server PPTP : Yes
• VPN Fusion : No

USB application

• HDD hibernation : No
• Safely Remove disk : No
• AiCloud : No
• Download master : No
• AiDisk : No
• Media Server : No
• Time Machine : No
• Samba Server : No
• FTP Server : No
• Shared Folder privileges : No

Administration

Operating mode : Wireless router mode

Range extender mode

Access point mode

Media bridge mode

• Operating system : ASUSWRT
• Free OS upgrade : Yes
• Firewall : Yes
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• Wake on LAN (WOL) : Yes
• SSH : Yes
• Configuration backup and restore : Yes
• Diagnosis tools : Yes
• Feedback system : Yes
• System log : Yes
