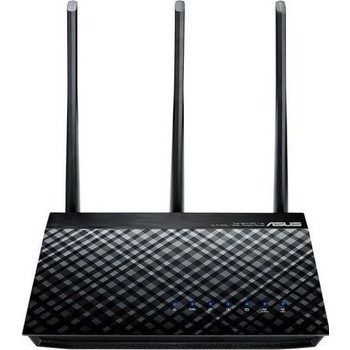

Asus DSL-AC750

AC750 Dual-Band ADSL/VDSL Wi-Fi Modem Router with Parental Controls 2-in-1 design

Dual WAN ports for dual usage – Wi-Fi router and DSL modem

Great compatibility

Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services

Intuitive ASUS Router app

Manage your network anywhere, without needing to boot up a PC

Parental Controls

Monitor and filter internet activities for your families and children

VPN server and client support

Remotely access your home network through encrypted and private connection

Model

DSL-AC750

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

IEEE 802.11e

IEEE 802.11i

IPv4

IPv6

Product Segment

AC750 complete AC performance : 300+433 Mbps

Wi-Fi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 433 Mbps

xDSL Data Rate

• VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
• ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
• ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps

Antenna

External antenna x 3

Operating Frequency 2.4G Hz / 5 GHz

Ports 1 x RJ11 for xDSL 2 x RJ45 for WAN/LAN

Button

WPS Button, Reset Button, Power Button

LED Indicator

Power, WLAN, LAN x 2, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi

Power Supply

• AC Input : 100 ~240 V(50~60HZ)
• DC Output : 12 V/1 A

Product Weight (g) 440 g

Router APP

ASUS Router APP

Parental Control

Parental Control

Parental Control Customized Internet schedule

• Maximum Parental Control profile : 16
• Maximum Parental Control content filter rule : 16

Traffic Control

Bandwidth limiter

Maximum Bandwidth limiter rule : 32

Traditional QoS

Maximum Traditional QoS rule : 32

Traffic Monitor

Real-time traffic monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Traffic analysis period : Daily, Weekly, Monthly

Website history

Wireless

IPv6

Wi-Fi Encryption : Open system, WPA/WPA2-Personal

UTF-8 SSID

Guest Network

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2-Personal

WPS

Wi-Fi MAC address filter

Maximum MAC filters : 32

Wireless scheduler

RADIUS Server

WAN

Internet connection Type : PPPoE, PPPoA, PPTP, L2TP, Automatic IP, Static IP, BRIDGE

Dual WAN

Port forwarding

Maximum port forwarding rule : 32

Port triggering

Maximum port triggering rule : 14

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server

IGMP snooping

IPTV

Manually assign IP address

Maximum manually assign IP address rule : 32

VPN

VPN Client L2TP

VPN Client OVPN

VPN Client PPTP

VPN Server OVPN

VPN Server PPTP

USB application

File System : No

Administration

• Operating mode : Router
• Operating system : ASUSWRT

Free OS upgrade

Firewall

• Maximum Firewall keyword filter : 27
• Maximum Firewall network service filter : 8
• Maximum Firewall URL filter : 27

Wake on LAN (WOL)

SSH

Configuration backup and restore

Feedback system

System log
